軸  承

型  號

Bearing

number

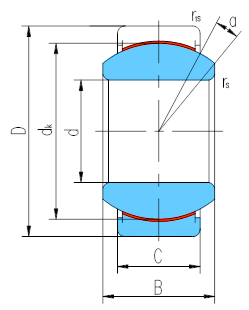

外 形 尺 寸

Dimensions 　　　　　mm/inch

額定載荷

Load ratings  kN

重 量

Weight

≈kg

d

D

B

C

dk

rs

min

r1s

min

α?

≈

動載荷

Dynamic

靜載荷

Static

GEZ19ETL-2RS

19.05

31.75

16.662

14.275

27.5

0.3

0.6

6

50

117

0.053

0.75

1.25

0.656

0.562

1.081

0.012

0.024

GEZ22ETL-2RS

22.225

36.513

19.431

16.662

32

0.3

0.6

6

69

160

0.085

0.875

1.4375

0.756

0.656

1.258

0.012

0.024

GEZ25ETL-2RS

25.4

41.275

22.225

19.05

36.5

0.3

0.6

6

104

250

0.121

1

1.625

0.875

0.75

1.437

0.012

0.024

GEZ31ETL-2RS

31.75

50.8

27.762

23.8

45.5

0.6

0.6

6

160

390

0.23

1.25

2

1.093

0.937

1.788

0.024

0.024

GEZ34ETL-2RS

34.925

55.563

30.15

26.187

49

0.6

1

5

190

460

0.35

1.375

2.1875

1.187

1.031

1.926

0.024

0.04

GEZ38ETL-2RS

38.1

61.913

33.325

28.575

54.7

0.6

1

6

235

560

0.42

1.5

2.4375

1.312

1.125

2.154

0.024

0.04

GEZ44ETL-2RS

44.45

71.438

38.887

33.325

63.9

0.6

1

6

320

765

0.64

1.75

2.8125

1.531

1.312

2.511

0.024

0.04

GEZ50ETL-2RS

50.8

80.963

44.45

38.1

73

0.6

1

6

415

1000

0.93

2

3.1875

1.75

1.5

2.869

0.024

0.04

GEZ57ETL-2RS

57.15

90.488

50.013

42.85

82

0.6

1

6

525

1260

1.3

2.25

3.5625

1.969

1.687

3.223

0.024

0.04

GEZ63ETL-2RS

63.5

100.013

55.55

47.625

92

1

1

6

655

1570

1.85

2.5

3.9375

2.187

1.875

3.616

0.04

0.04

GEZ69ETL-2RS

69.85

111.125

61.112

52.375

100

1

1

6

785

1880

2.4

2.75

4.375

2.406

2.062

3.937

0.04

0.04

GEZ76ETL-2RS

76.2

120.65

66.675

57.15

109.5

1

1

6

935

2250

3.1

3

4.75

2.625

2.25

4.303

0.04

0.04

GEZ82ETL-2RS

82.55

130.175

72.238

61.9

119

1

1

6

1100

2650

3.8

3.25

5.125

2.844

2.437

4.685

0.04

0.04

GEZ88ETL-2RS

88.9

139.7

77.775

66.675

128

1

1

6

1280

3070

4.8

3.5

5.5

3.062

2.625

5.04

0.04

0.04

GEZ95ETL-2RS

95.25

149.225

83.337

71.425

137

1

1

6

1460

3520

5.8

3.75

5.875

3.281

2.812

5.393

0.04

0.04

GEZ101ETL-2RS

101.6

158.75

88.9

76.2

146

1

1

6

1660

4000

7

4

6.25

3.5

3

5.748

0.04

0.04

GEZ107ETL-2RS

107.95

168.275

94.463

80.95

155

1

1

6

1880

4510

8.4

4.25

6.625

3.719

3.187

6.102

0.04

0.04

GEZ114ETL-2RS

114.3

177.8

100.013

85.725

164.5

1

1

6

2110

5070

9.8

4.5

7

3.937

3.375

6.476

0.04

0.04

GEZ120ETL-2RS

120.65

187.325

105.562

90.475

173.5

1

1

6

2350

5650

11.5

4.75

7.375

4.156

3.562

6.83

0.04

0.04

GEZ127ETL-2RS

127

196.85

111.125

95.25

183

1

1

6

2610

6270

13.5

5

7.75

4.375

3.75

7.204

0.04

0.04

GEZ152ETL-2RS

152.4

222.25

120.65

104.775

207

1

1

5

3250

7800

17.5

6

8.75

4.75

4.125

8.15

0.04

0.04
